M74HC4017

DECADE COUNTER/DIVIDER

ST Microelectronics

M74HC4017 General Description

The M54/74HC4017 is a high speed CMOS DECADE COUNTER/DIVIDER fabricated in silicon gate C2MOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption. The M54/74HC4017 is a 5-stage Johnson counter with 10 decoded outputs. Each of the decoded outputs .

M74HC4017 Datasheet (258.88 KB)

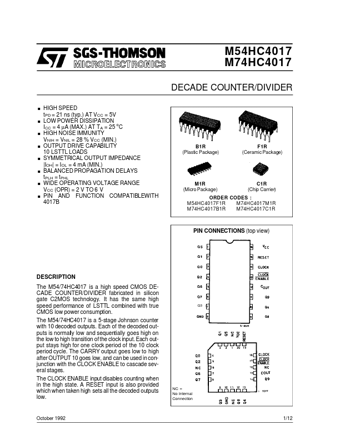

M74HC4017 Datasheet Preview — Preview of M74HC4017 PDF

Datasheet Details

Part number:

M74HC4017

Manufacturer:

STMicroelectronics ↗

File Size:

258.88 KB

Description:

Decade counter/divider.
M54HC4017 M74HC4017 DECADE COUNTER/DIVIDER . . . . . . . . HIGH SPEED tPD = 21 ns (typ.) AT VCC = 5V LOW POWER DISSIPATION ICC = 4 µA (MAX.) AT TA =.
