M93S46 4Kbit / 2Kbit and 1Kbit 16-bit wide MICROWIRE Serial Access EEPROM with Block Protection

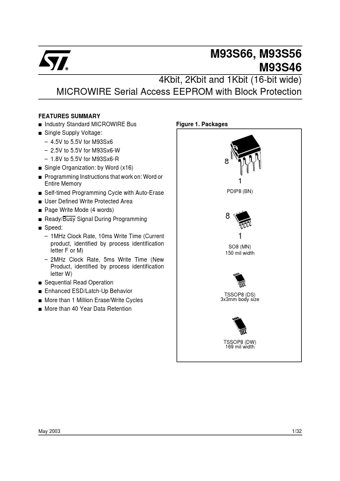

This specification covers a range of 4K, 2K, 1K bit serial Electrically Erasable Programmable Memory (EEPROM) products (respectively for M93S66, M93S56, M93S46). In this text, these products are collectively referred to as M93Sx6. Figure 2. Logic Diagram VCC D C S PRE W M93Sx6 Q VSS AI02020 Tabl.

M93S46 Features

* SUMMARY s Industry Standard MICROWIRE Bus s Figure 1. Packages Single Supply Voltage:

* 4.5V to 5.5V for M93Sx6

* 2.5V to 5.5V for M93Sx6-W

* 1.8V to 5.5V for M93Sx6-R 8 1 PDIP8 (BN) s s Single Organization: by Word (x16) Programming Instructions that work on: Word or En
