M93S66 4Kbit / 2Kbit and 1Kbit 16-bit wide MICROWIRE Serial Access EEPROM with Block Protection

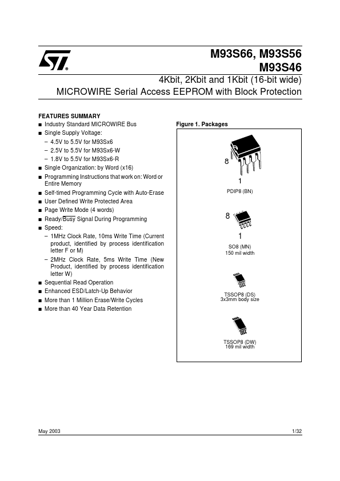

This specification covers a range of 4K, 2K, 1K bit serial Electrically Erasable Programmable Memory (EEPROM) products (respectively for M93S66, M93S56, M93S46). In this text, these products are collectively referred to as M93Sx6. Figure 2. Logic Diagram VCC D C S PRE W M93Sx6 Q VSS AI02020 Tabl.

M93S66 Features

* SUMMARY s Industry Standard MICROWIRE Bus s Figure 1. Packages Single Supply Voltage:

* 4.5V to 5.5V for M93Sx6

* 2.5V to 5.5V for M93Sx6-W

* 1.8V to 5.5V for M93Sx6-R 8 1 PDIP8 (BN) s s Single Organization: by Word (x16) Programming Instructions that work on: Word or En

M93-S46.pdf

This datasheet PDF includes multiple part numbers: M93S66, M93. Please refer to the document for exact specifications by model.
M93S66 Datasheet Preview Page 2 M93S66 Datasheet Preview Page 3

Datasheet Details

Part number:

M93S66, M93

Manufacturer:

STMicroelectronics ↗

File Size:

211.01 KB

Description:

4kbit / 2kbit and 1kbit 16-bit wide microwire serial access eeprom with block protection.

Note:

This datasheet PDF includes multiple part numbers: M93S66, M93.
Please refer to the document for exact specifications by model.
