MTP3055E Datasheet - ST Microelectronics

MTP3055E N-CHANNEL MOSFET

® MTP3055E N - CHANNEL 60V - 0.1Ω - 12A TO-220 STripFET™ MOSFET T YPE MTP3055E s s s s s V DSS 60 V R DS(on) < 0.15 Ω ID 12 A TYPICAL RDS(on) = 0.1 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED 175oC OPERATING TEMPERATURE APPLICATION ORIENTED CHARACTERIZATION 3 1 2 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s REGULATORS s DC-DC & DC-AC CONVERTERS s MOTOR CONTROL, AUDIO AMPLIFIERS s AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMPDRIVERS, Etc..

MTP3055E-STMicroelectronics.pdf

Preview of MTP3055E PDF

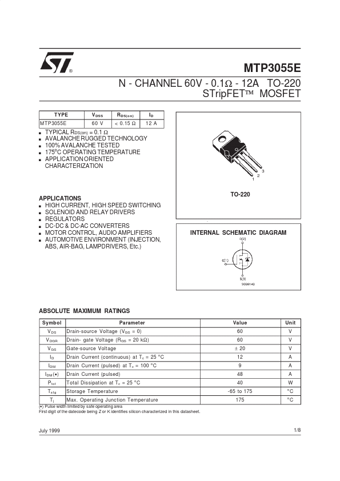

MTP3055E Datasheet Preview Page 2 MTP3055E Datasheet Preview Page 3

Datasheet Details

Part number:

MTP3055E

Manufacturer:

STMicroelectronics ↗

File Size:

79.38 KB

Description:

N-channel mosfet.
