MTP30008 - Three-Phase Bridge Rectifier

This page provides the datasheet information for the MTP30008, a member of the MTP300 Three-Phase Bridge Rectifier family.

Datasheet Summary

Features

  • UL recognition file number E320098 Typical IR less than 5.0 µA High surge current capability Low thermal resistance Compliant to RoHS Isolation voltage up to 2500V.

📥 Download Datasheet

Datasheet preview – MTP30008

Datasheet Details

Part number MTP30008
Manufacturer nELL
File Size 358.35 KB
Description Three-Phase Bridge Rectifier
Datasheet download datasheet MTP30008 Datasheet
Additional preview pages of the MTP30008 datasheet.

📁 Similar Datasheet

  • MTP3055 - TMOS POWER FET 12 AMPERES 60 VOLTS RDS(on) = 0.15 OHM (Motorola)
  • MTP3055 - N - CHANNEL 60V - 0.1ohm - 12A TO-220 STripFET MOSFET (ST Microelectronics)
  • MTP3055A - N-Channel MOSFET (STMicroelectronics)
  • MTP3055AFI - N-Channel MOSFET (STMicroelectronics)
  • MTP3055E - N-CHANNEL MOSFET (ST Microelectronics)
  • MTP3055V - N-Channel Enhancement Mode Field Effect Transistor (Fairchild Semiconductor)
  • MTP3055V - Power MOSFET (ON Semiconductor)
  • MTP3055VL - N-Channel Logic Level Enhancement Mode Field Effect Transistor (Fairchild Semiconductor)
  • MTP3055VL - N-Channel MOSFET (ON Semiconductor)
  • MTP30N06E - TMOS Power FET (Motorola Semiconductor)
Other Datasheets by nELL
  • MTP30010 - Three-Phase Bridge Rectifier
  • MTP30012 - Three-Phase Bridge Rectifier
  • MTP30016 - Three-Phase Bridge Rectifier
  • MTP30018 - Three-Phase Bridge Rectifier
  • MTP40008 - Three-Phase Bridge Rectifier
  • MTP40010 - Three-Phase Bridge Rectifier
  • MTP40012 - Three-Phase Bridge Rectifier
  • MTP40016 - Three-Phase Bridge Rectifier

Full PDF Text Transcription

Click to expand full text

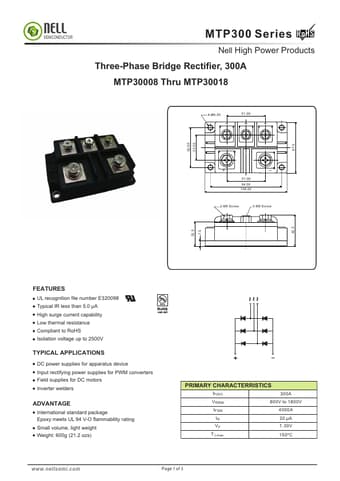

SEMICONDUCTOR MTP300 Series RRooHHSS Nell High Power Products Three-Phase Bridge Rectifier, 300A MTP30008 Thru MTP30018 4-ø6.50 ~ 51.00 ~ ~ 67.0 52.50 33.50 + 51.00 94.00 108.00 - 2-M8 Screw 3-M6 Screw 42.0 32.5 7.5 FEATURES UL recognition file number E320098 Typical IR less than 5.0 µA High surge current capability Low thermal resistance Compliant to RoHS Isolation voltage up to 2500V TYPICAL APPLICATIONS DC power supplies for apparatus device Input rectifying power supplies for PWM converters Field supplies for DC motors Inverter welders ADVANTAGE International standard package Epoxy meets UL 94 V-O flammability rating Small volume, light weight Weight: 600g (21.2 ozs) PRIMARY CHARACTERRISTICS IF(AV) 300A VRRM 800V to 1800V IFSM 4000A IR 20 µA VF 1.30V TJ max.
