MTP3N60FI, MTP3N60 Datasheet - ST Microelectronics

MTP3N60FI N-Channel MOSFET

MTP3N60 MTP3N60FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR TYPE MTP3N60 MTP3N60FI s s s s s V DSS 600 V 600 V R DS( on) < 2.5 Ω < 2.5 Ω ID 3.9 A 2.5 A TYPICAL RDS(on) = 2 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC APPLICATION ORIENTED CHARACTERIZATION TO-220 3 1 2 1 2 3 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s CHOPPER REGULATORS, CONVERTERS, MOTOR CONTROL, LIGHTING FOR INDUSTRIAL AND CONSUM.

MTP3N60_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: MTP3N60FI, MTP3N60. Please refer to the document for exact specifications by model.

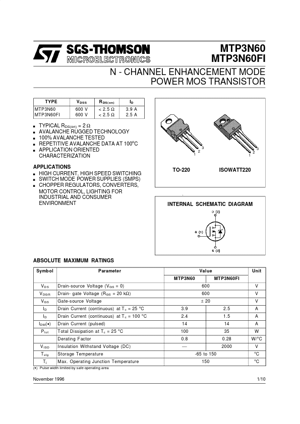

MTP3N60FI Datasheet Preview Page 2 MTP3N60FI Datasheet Preview Page 3

Datasheet Details

Part number:

MTP3N60FI, MTP3N60

Manufacturer:

STMicroelectronics ↗

File Size:

200.41 KB

Description:

N-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: MTP3N60FI, MTP3N60.
Please refer to the document for exact specifications by model.
