MTP3N25E - TMOS POWER FET 3.0 AMPERES 250 VOLTS

MTP3N25E Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MTP3N25E/D Designer's www.DataSheet4U.com TMOS E-FET .™ Power Field Effect Transisto.

MTP3N25E Features

* ing reduces switching losses. 800 Ciss 700 C, CAPACITANCE (pF) 600 500 Crss 400 300 200 100 0 10 VDS = 0 V VGS = 0 V TJ = 25°C Ciss Coss Crss 5 VGS 0 VDS 5 10 15 20 25 GATE
* TO
* SOURCE OR DRAIN
* TO
* SOURCE VOLTAGE (VOLTS) Figure 7. Capacitance Variation 4 Motoro

MTP3N25E Applications

* in power supplies, converters and PWM motor controls, these devices are particularly well suited for bridge circuits where diode speed and commutating safe operating areas are critical and offer additional safety margin against unexpected voltage transients.
* Avalanche Energy Specified

📥 Download Datasheet

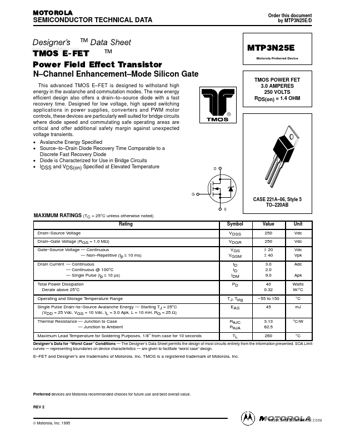

Preview of MTP3N25E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MTP3N25E
Manufacturer
Motorola
File Size
177.46 KB
Datasheet
MTP3N25E_Motorola.pdf
Description
TMOS POWER FET 3.0 AMPERES 250 VOLTS
