P6N25 Datasheet - ST Microelectronics

P6N25 STP6N25

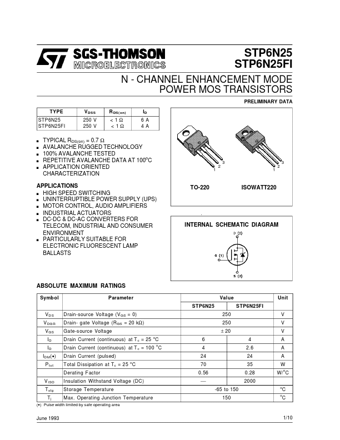

www.DataSheet.co.kr STP6N25 STP6N25FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS PRELIMINARY DATA TYPE STP6N25 STP6N25FI s s s s s V DSS 250 V 250 V R DS( on) < 1Ω < 1Ω ID 6A 4A TYPICAL RDS(on) = 0.7 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC APPLICATION ORIENTED CHARACTERIZATION TO-220 3 1 2 1 2 3 APPLICATIONS HIGH SPEED SWITCHING s UNINTERRUPTIBLE POWER SUPPLY (UPS) s MOTOR CONTROL, AUDIO AMPLIFIERS s INDUSTRIAL ACTUATORS s DC-DC & DC.

P6N25_STMicroelectronics.pdf
