Description

www.DataSheet4U.com PD20015-E PD20015S-E RF power transistor - LdmoST family Preliminary Data .
The PD20015-E is a common source N-channel, enhancement-mode lateral field-effect RF power transistor.

📥 Download Datasheet

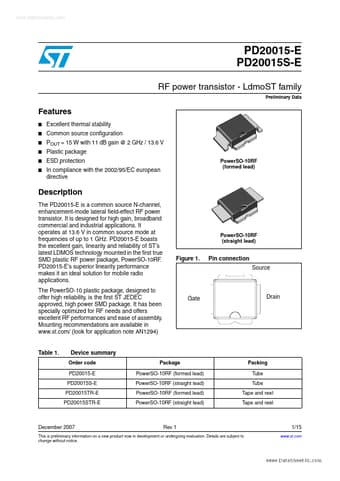

PD20015S-E Datasheet Preview — This datasheet PDF includes multiple part numbers: PD20015S-E, PD20015-E. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: PD20015S-E, PD20015-E
Manufacturer: STMicroelectronics ↗
File Size: 302.43 KB
Datasheet: PD20015-E_STMicroelectronics.pdf
Description: Transistors
Note: This datasheet PDF includes multiple part numbers: PD20015S-E, PD20015-E.
Please refer to the document for exact specifications by model.

Applications

* It operates at 13.6 V in common source mode at frequencies of up to 1 GHz. PD20015-E boasts the excellent gain, linearity and reliability of ST’s latest LDMOS technology mounted in the first true SMD plastic RF power package, PowerSO-10RF. PD20015-E’s superior linearity performance makes it an idea
