STB30NS15 - N-CHANNEL Power MOSFET

STB30NS15 Description

N-CHANNEL 150V - 0.075 Ω - 30A D2PAK LOW GATE CHARGE STripFET™ POWER MOSFET TYPE STB30NS15 s s s s STB30NS15 VDSS 150 V RDS(on) <0.1 Ω ID 30 A s .
This MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate char.

STB30NS15 Applications

* It is also intended for any applications with low gate drive requirements. D2PAK TO-263 (Suffix “T4”) INTERNAL SCHEMATIC DIAGRAM APPLICATIONS s HIGH-EFFICIENCY DC-DC CONVERTERS s UPS AND MOTOR CONTROL ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM(
* ) Ptot dv/dt (1) EAS (2) Tstg

📥 Download Datasheet

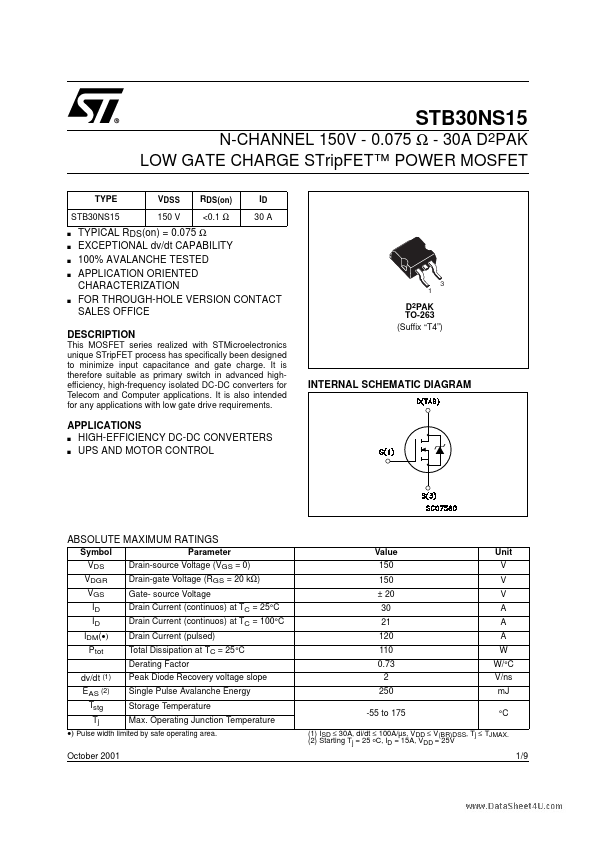

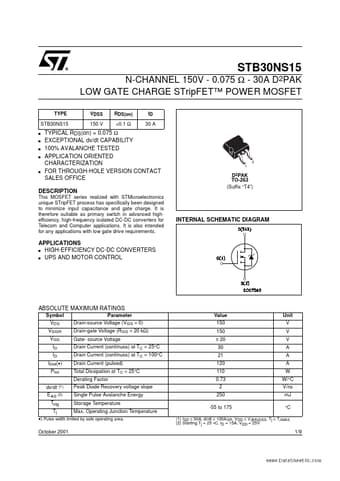

Preview of STB30NS15 PDF

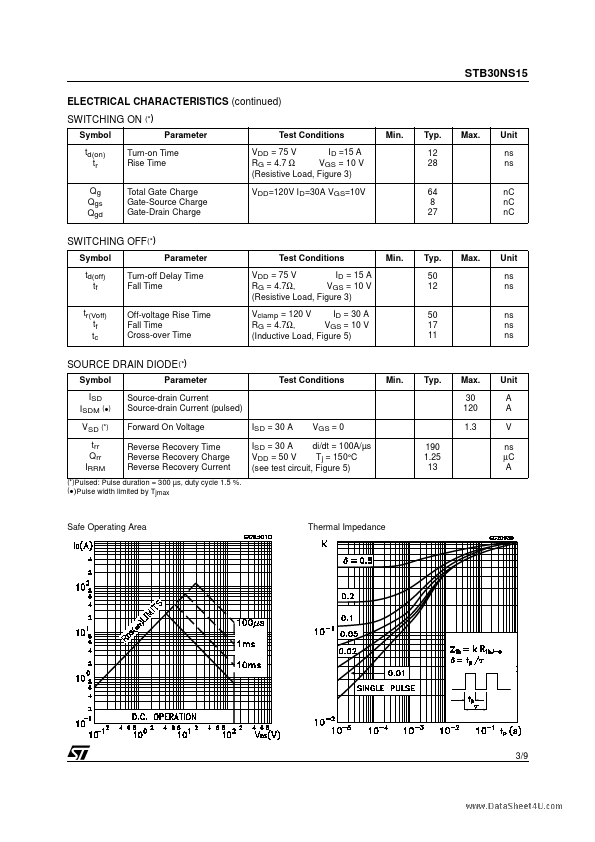

datasheet Preview Page 2 datasheet Preview Page 3
