STB300NH02L - N-CHANNEL Power MOSFET

Product Overview

ST Microelectronics

Datasheet Details

Part number	STB300NH02L
Manufacturer	STMicroelectronics
File Size	475.53 KB
Description	N-CHANNEL Power MOSFET
Datasheet	STB300NH02L Datasheet
Additional preview pages of the STB300NH02L datasheet.

Product details

Description

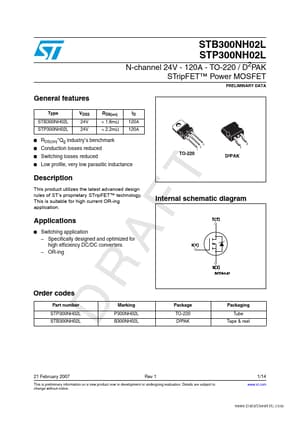

This product utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology. Switching application Specifically designed and optimized for high efficiency DC/DC converters OR-ing Order codes Part number STP300NH02L STB300NH02L Marking P300NH02L B300NH02L Package TO-220 D²PAK Packaging Tube Tape & reel 21 February 2007 Rev 1 1/14 www.st.com 14 This is

Features

Type STB300NH02L STP300NH02L.
VDSS 24V 24V RDS(on) < 1.8mΩ < 2.2mΩ ID 120A 120A 3 1 RDS(on).
Qg industry’s benchmark Conduction losses reduced Switching losses reduced Low profile, very low parasitic inductance TO-220 1 2 3 D²PAK.
