STB3055L2 Datasheet (SamHop)

STB3055L2, MOSFET

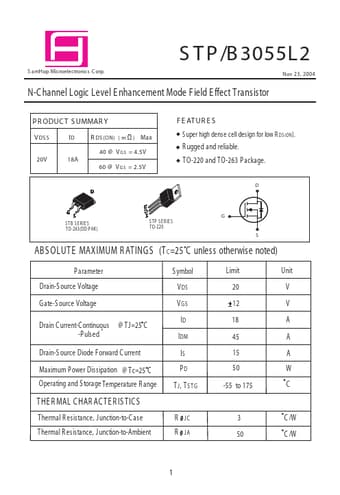

S T P /B 3055L2 S amHop Microelectronics C orp.

Nov 23, 2004 N-C hannel Logic Level E nhancement Mode Field E ffect Transistor P R ODUC T S UMMAR Y VDS S 20V ID R DS (ON) ( m W ) Max 40 @ VGS = 4.5V 18A 60 @ VGS = 2.5V F E AT UR E S S uper high dense cell design for low R DS(ON).

R ugged and reliable.

TO-220 and TO-263 P ackage.
