STB70L60 - N-Channel Logic Level Enhancement Mode Field Effect Transistor

STB70L60 Description

Green Product STB/P70L60 Ver 1.1 S a mHop Microelectronics C orp.N-Channel Logic Level Enhancement Mode Field Effect Transistor PRODUCT SUMMARY V .

STB70L60 Features

* Super high dense cell design for extremely low RDS(ON). High power and current handling capability. TO-220 & TO-263 package. ID 70A R DS(ON) (m Ω) Typ 12 @ VGS=10V 18 @ VGS=4.5V D D G D S G S G S TP S E R IE S TO-220 S TB S E R IE S TO-263(DD-P AK) S ABSOLUTE MAXIMUM RATINGS ( T C=25 °C unl

📥 Download Datasheet

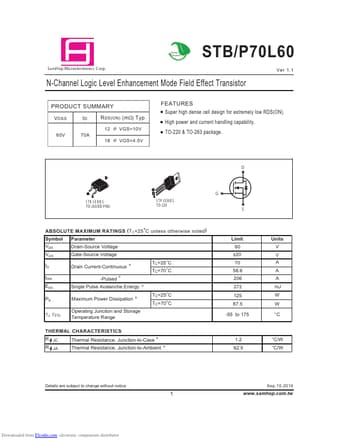

Preview of STB70L60 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STB70L60
Manufacturer
SamHop
File Size
275.57 KB
Datasheet
STB70L60-SamHop.pdf
Description
N-Channel Logic Level Enhancement Mode Field Effect Transistor
