STB70NF03L-1 Datasheet, Mosfet, STMicroelectronics

STB70NF03L-1 Features

• Mosfet Type STB70NF03L STP70NF03L STB70NF03L-1 VDSS 30V 30V 30V RDS(on) < 0.0095Ω < 0.0095Ω < 0.0095Ω
• Conduction losses reduced
• Switching losses reduced ID 70A 70A 70A

PDF File Details

Part number:

STB70NF03L-1

Manufacturer:

STMicroelectronics ↗

File Size:

437.04kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This application specific Power MOSFET is the third genaration of STMicroelectronis unique "Single Feature Size™" strip-based process

STB70NF03L-1 Application

• Applications

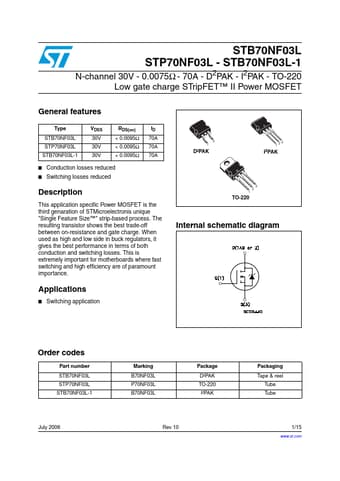

• Switching application 3 1 D²PAK 123 I2PAK 3 2 1 TO-220 Internal schematic diagram Order codes Part number STB70NF03L STP7

TAGS

STB70NF03L-1

STMicroelectronics
