STB76NF75 N-CHANNEL POWER MOSFET

STB76NF75 Description

STB76NF75, STI76NF75 STP76NF75 N-channel 75 V, 0.0095 Ω, 80 A TO-220, D2PAK, I2PAK STripFET™ II Power MOSFET .
This Power MOSFET is the latest development of STMicroelectronics unique “single feature size” strip-based process.

STB76NF75 Features

* Type STB76NF75 STI76NF75 STP76NF75 VDSS 75 V 75 V 75 V RDS(on) max ID < 0.011 Ω < 0.011 Ω < 0.011 Ω 80 A(1) 80 A(1) 80 A(1) 1. Current limited by package
* Exceptional dv/dt capability

📥 Download Datasheet

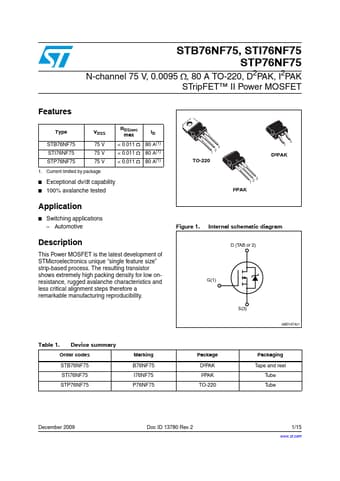

Preview of STB76NF75 PDF
datasheet Preview Page 2 datasheet Preview Page 3
