STB70NF03L N-CHANNEL MOSFET

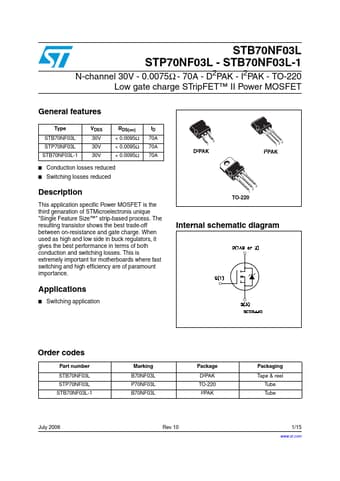

📥 Download Datasheet  Datasheet Preview Page 1

Description

N-CHANNEL 30V - 0.008Ω - 70A TO-220/I2PAK LOW GATE CHARGE STripFET™ POWER MOSFET TYPE STP70NF03L STB70NF03L-1 s s s s s STP70NF03L STB70NF03L-1 VDSS.
This application specific Power Mosfet is the third generation of STMicroelectronics unique “Single Feature Size ™” strip-based process.

📥 Download Datasheet

Preview of STB70NF03L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* s SPECIFICALLY DESIGNED AND OPTIMISED FOR HIGH EFFICIENCY CPU CORE DC/DC CONVERTERS INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT dv/dt (1) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Curr
