STD3NK50ZT4, STD3NK50Z Datasheet - ST Microelectronics

STD3NK50ZT4 N-Channel MOSFET

These high-voltage devices are Zener-protected N-channel Power MOSFETs developed using the SuperMESH™ technology by STMicroelectronics, an optimization of the well-established PowerMESH™. In addition to a significant reduction in on-resistance, these devices are designed to ensure a high level of dv.

STD3NK50ZT4 Features

* Order codes VDSS RDS(on) max. STD3NK50Z-1 STD3NK50ZT4 500 V 3.3 Ω

* Extremely high dv/dt capability

* 100% avalanche tested

* Gate charge minimized

* Very low intrinsic capacitance

* Zener-protected PTOT 45 W Package IPAK DPAK G(1) Applications

STD3NK50Z_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STD3NK50ZT4, STD3NK50Z. Please refer to the document for exact specifications by model.

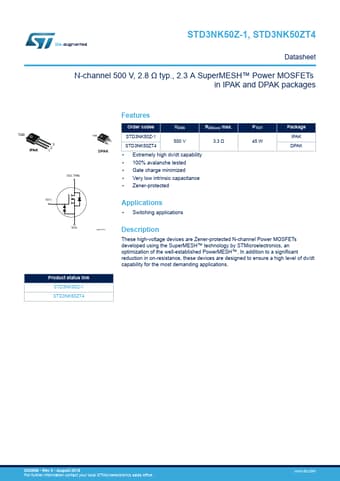

STD3NK50ZT4 Datasheet Preview Page 2 STD3NK50ZT4 Datasheet Preview Page 3

Datasheet Details

Part number:

STD3NK50ZT4, STD3NK50Z

Manufacturer:

STMicroelectronics ↗

File Size:

514.36 KB

Description:

N-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: STD3NK50ZT4, STD3NK50Z.
Please refer to the document for exact specifications by model.
