STD3NK90ZFP, STD3NK90Z N-CHANNEL Power MOSFET

ST Microelectronics

Description

www.DataSheet4U.com STP3NK90Z - STP3NK90ZFP STD3NK90Z - STD3NK90Z-1 N-CHANNEL 900V - 4.1Ω - 3A TO-220/TO-220FP/DPAK/IPAK Zener-Protected SuperMESH™Po.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

📥 Download Datasheet

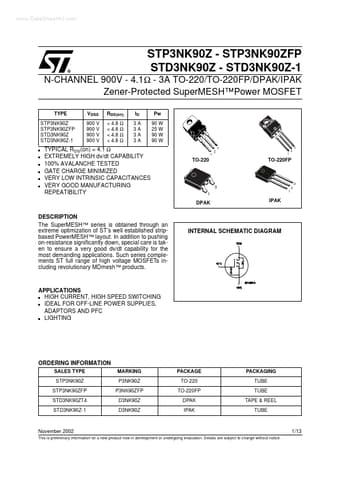

STD3NK90ZFP Datasheet Preview — This datasheet PDF includes multiple part numbers: STD3NK90ZFP, STD3NK90Z. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STD3NK90ZFP, STD3NK90Z
Manufacturer: STMicroelectronics ↗
File Size: 496.95 KB
Datasheet: STD3NK90Z_STMicroelectronics.pdf
Description: N-CHANNEL Power MOSFET
Note: This datasheet PDF includes multiple part numbers: STD3NK90ZFP, STD3NK90Z.
Please refer to the document for exact specifications by model.

Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. INTERNAL SCHEMATIC DIAGRAM APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFC LIGHTING ORDERING INFORMATION SALES TYPE STP3NK90Z STP3NK90ZFP ST
