STD3NK100Z

N-channel Power MOSFET

STMicroelectronics

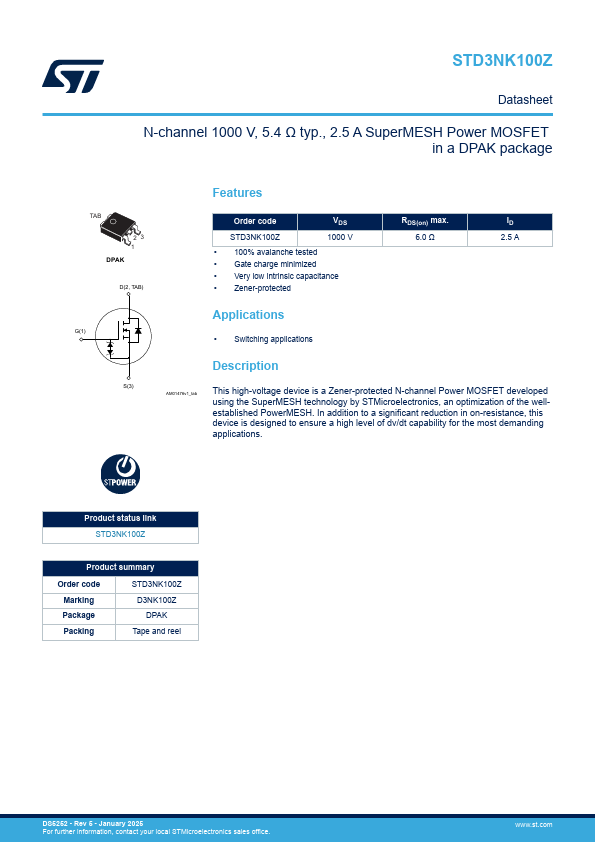

STD3NK100Z Features

* Type STF3NK100Z STP3NK100Z STD3NK100Z

* VDSS 1000V 1000V 1000V RDS(on) Max < 6Ω < 6Ω < 6Ω ID 2.5A 2.5A 2.5A PTOT 25W 90W 90W TO-220 1 2 1 3 2 3 TO-220FP Extremely high dv/dt capability 3 100% avalanche tested Gate charge minimized Very low intrinsic capacitances

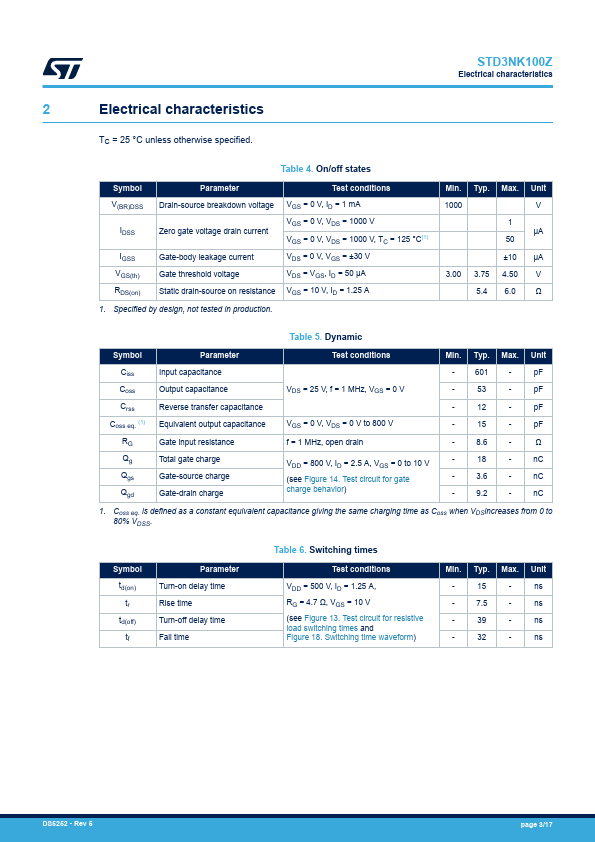

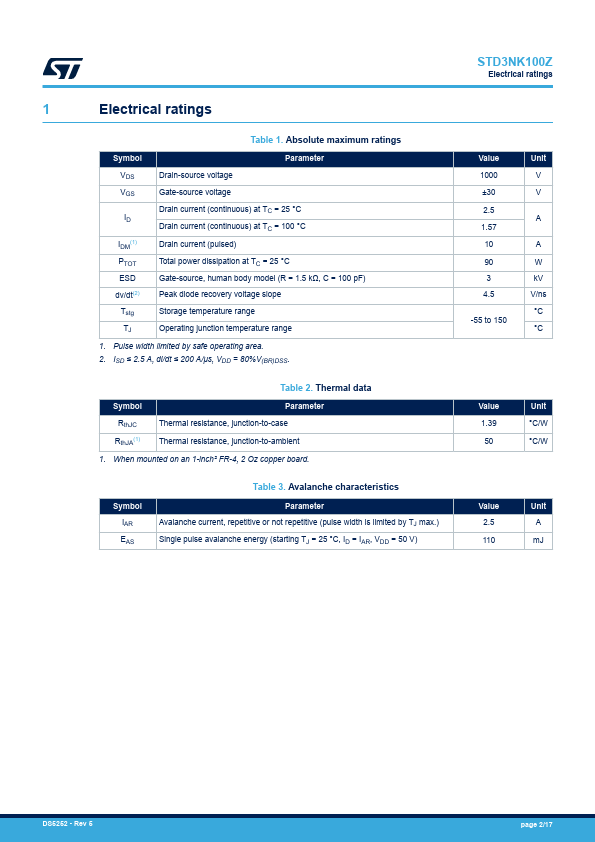

STD3NK100Z General Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, specialties is taken to ensure a very good dv/dt capability for the most demanding application. Such series complements S.
