STD40NF06 - N-CHANNEL POWER MOSFET

STD40NF06 Description

N-CHANNEL 60V - 0.024 Ω - 40A DPAK STripFET™ II POWER MOSFET TYPE STD40NF06 www.DataSheet4U.com s TYPICAL s s s STD40NF06 VDSS 60 V RDS(on) <0.028 .
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" stripbased process.

STD40NF06 Applications

* s HIGH CURRENT, HIGH SWITCHING SPEED s MOTOR CONTROL , AUDIO AMPLIFIERS s SOLENOID AND RELAY DRIVERS s DC-DC & DC-AC CONVERTERS ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM(
* ) Ptot dv/dt(1) EAS(2) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Ga

📥 Download Datasheet

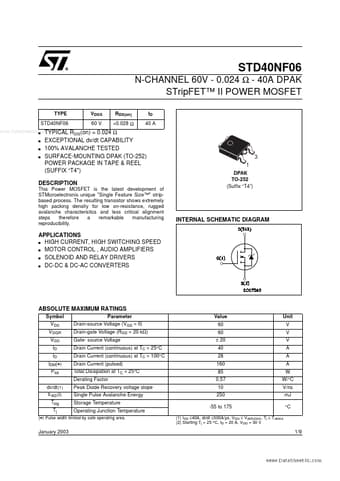

Preview of STD40NF06 PDF
