STE36N50-DK Datasheet - ST Microelectronics

STE36N50-DK N-Channel Enhancement Mode Power MOS Transistor and Ultra-Fast Diode in Isotop Package

STE36N50-DK N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR AND ULTRA-FAST DIODE IN ISOTOP PACKAGE TYPE STE36N50-DK s V DSS 500 V R DS( on) < 0.14 Ω ID 36 A 4 3 s s s s s s s s s s DEDICATED FOR POWER FACTOR CORRECTOR APPLICATIONS LOW GATE CHARGE MOSFET TURBOSWITCH DIODE INCORPORATED HIGH CURRENT POWER MODULE AVALANCHE RUGGED TECHNOLOGY VERY LARGE SOA - LARGE PEAK POWER CAPABILITY EASY TO MOUNT EXTREMELY LOW Rth JUNCTION TO CASE VERY LOW DRAIN TO CASE CAPACITANCE VERY LOW INTERNAL PARAS.

STE36N50-DK Datasheet (166.88 KB)

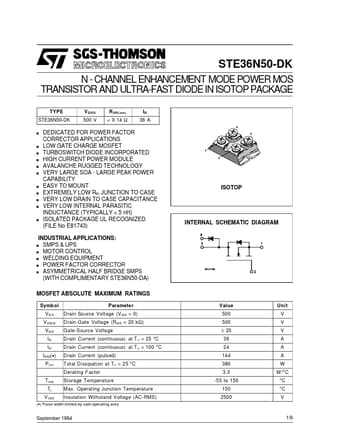

STE36N50-DK Datasheet Preview — Preview of STE36N50-DK PDF

Datasheet Details

Part number:

STE36N50-DK

Manufacturer:

STMicroelectronics ↗

File Size:

166.88 KB

Description:

N-channel enhancement mode power mos transistor and ultra-fast diode in isotop package.
