STE53NA50 N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

STE53NA50 Description

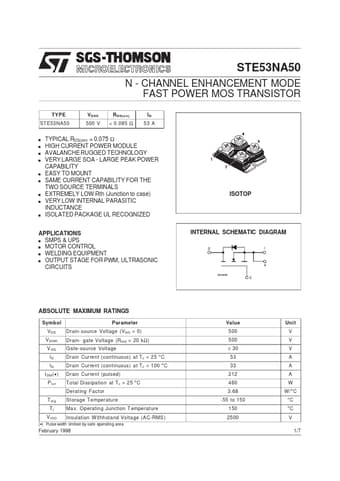

STE53NA50 N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR TYPE ST E53NA50 V DSS 500 V R DS(on) < 0.085 Ω ID 53 A s s s s s s s s s TYPICAL.

STE53NA50 Applications

* s SMPS & UPS s MOTOR CONTROL s WELDING EQUIPMENT s OUTPUT STAGE FOR PWM, ULTRASONIC CIRCUITS INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM (
* ) P to t Parameter Drain-source Voltage (VGS = 0) Drain- gate Voltage (RGS = 20 k Ω ) Gate-source Voltage D
