STE70IE120

Monolithic Emitter Switched Bipolar Transistor

STE70IE120 Features

* VCS(ON) 1V

* IC 70A RCS(ON) 0.014W ISOTOP High voltage / high current Cascode configuration Ultra low equivalent on resistance Very fast-switch, up to 150 kHz Ultra low CISS Low dynamic VCS(ON)

* Internal schematic diagram Description www.DataSheet4U.com The STE70DE1

STE70IE120 General Description

www.DataSheet4U.com The STE70DE120 is manufactured in monolithic structure, to be used in industrial applications. Applications
*
* Solar Welding Order codes Part number STE70IE120 Marking E70IE120 Package ISOTOP Packaging Tube May 2007 Rev 1 1/7 www.st.com 7 This is preliminary info.

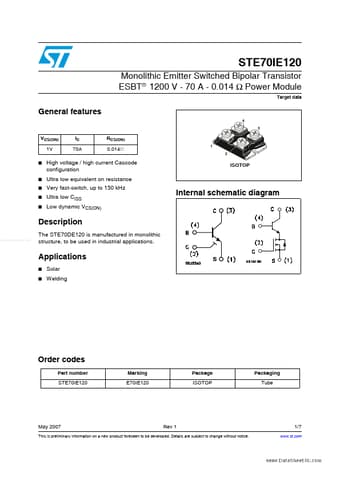

STE70IE120 Datasheet (171.32 KB)

Preview of STE70IE120 PDF

Datasheet Details

Part number:

STE70IE120

Manufacturer:

STMicroelectronics ↗

File Size:

171.32 KB

Description:

Monolithic emitter switched bipolar transistor.
