STE70NM60

N-channel Power MOSFET

STE70NM60 Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

STE70NM60 Datasheet (244.40 KB)

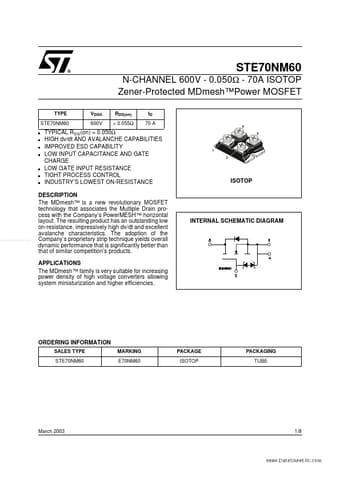

Preview of STE70NM60 PDF

Datasheet Details

Part number:

STE70NM60

Manufacturer:

STMicroelectronics ↗

File Size:

244.40 KB

Description:

N-channel power mosfet.
STE70NM60 N-CHANNEL 600V - 0.050Ω - 70A ISOTOP Zener-Protected MDmesh™Power MOSFET TYPE STE70NM60 VDSS 600V RDS(on) < 0.055Ω ID 70 A TYPICAL RDS(on) .
