STLVDS050, HIGH SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

The STLVDS050 is differential line drivers and receivers that use low-voltage differential signaling (LVDS) to achieve signaling rate as high as 400Mbps.

The EIA/TIA-644 standard compliant electrical interface provides a minimum differential output voltage magnitude of 247 mV into a 100 Ω load and r

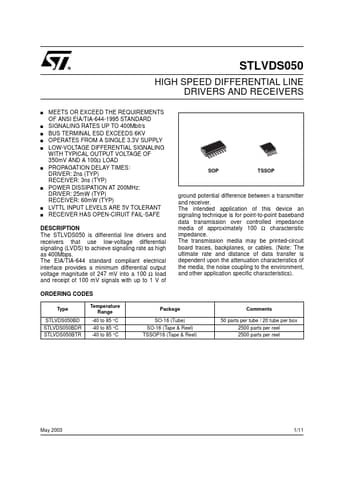

www.DataSheet4U.com STLVDS050 HIGH SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS s s s s s s s s s MEETS OR EXCEED THE REQUIREMENTS OF ANSI EIA/TIA-644-1995 STANDARD SIGNALING RATES UP TO 400Mbit/s BUS TERMINAL ESD EXCEEDS 6KV OPERATES FROM A SINGLE 3.3V SUPPLY LOW-VOLTAGE DIFFERENTIAL SIGNALING WITH TYPICAL OUTPUT VOLTAGE OF 350mV AND A 100Ω LOAD PROPAGATION DELAY TIMES: DRIVER: 2ns (TYP) RECEIVER: 3ns (TYP) POWER DISSIPATION AT 200MHz: DRIVER: 25mW (TYP) RECEIVER: 60mW (TYP) LVTTL INPUT
