STLVDS104, 4-PORT LVDS AND 4-PORT TTL-TO LVDS REPEATERS

The STLVDS104 is a differential line receiver and a LVTTL input connected to four differential line drivers that implement the electrical characteristics of low voltage differential signaling, for point to point baseband data transmission over controlled impedance media of approximately 100Ω.

The tr

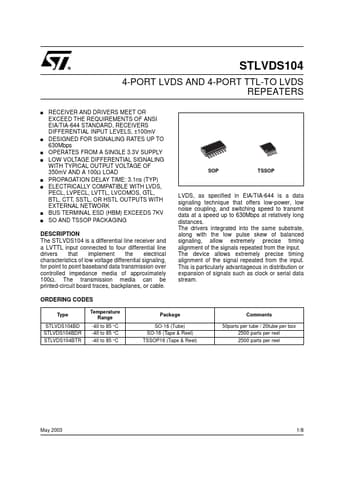

www.DataSheet4U.com STLVDS104 4-PORT LVDS AND 4-PORT TTL-TO LVDS REPEATERS s s s s s s s s RECEIVER AND DRIVERS MEET OR EXCEED THE REQUIREMENTS OF ANSI EIA/TIA-644 STANDARD, RECEIVERS DIFFERENTIAL INPUT LEVELS, ±100mV DESIGNED FOR SIGNALING RATES UP TO 630Mbps OPERATES FROM A SINGLE 3.3V SUPPLY LOW VOLTAGE DIFFERENTIAL SIGNALING WITH TYPICAL OUTPUT VOLTAGE OF 350mV AND A 100Ω LOAD PROPAGATION DELAY TIME: 3.1ns (TYP) ELECTRICALLY COMPATIBLE WITH LVDS, PECL, LVPECL, LVTTL, LVCOMOS, GTL, BTL,
