STLVDS385 Datasheet (ST Microelectronics) - 3.3V PROGRAMMABLE LVDS TRANSMITTER 24-BIT FLAT PANEL DISPLAY (FPD) LINK-85MHZ

STLVDS385, 3.3V PROGRAMMABLE LVDS TRANSMITTER 24-BIT FLAT PANEL DISPLAY (FPD) LINK-85MHZ

The STLVDS385 transmitter converts 28 bits of LVCMOS/LVTTL data into four LVDS (Low Voltage Differential Signaling) data streams.

A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS ORDERING CODES Type STLVDS385BTR Temperature Range -10 to 70°C link.

Eve

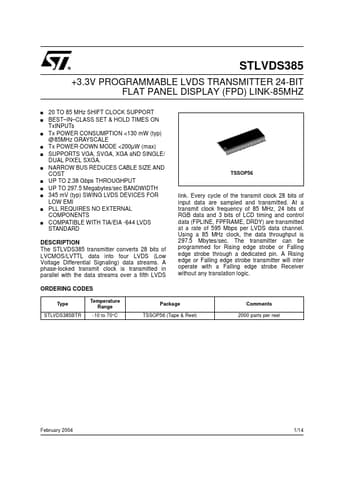

www.DataSheet4U.com STLVDS385 +3.3V PROGRAMMABLE LVDS TRANSMITTER 24-BIT FLAT PANEL DISPLAY (FPD) LINK-85MHZ s s s s s s s s s s s 20 TO 85 MHz SHIFT CLOCK SUPPORT BEST IN CLASS SET & HOLD TIMES ON TxINPUTs Tx POWER CONSUMPTION <130 mW (typ) @85MHz GRAYSCALE Tx POWER-DOWN MODE <200µW (max) SUPPORTS VGA, SVGA, XGA aND SINGLE/ DUAL PIXEL SXGA.

NARROW BUS REDUCES CABLE SIZE AND COST UP TO 2.38 Gbps THROUGHPUT UP TO 297.5 Megabytes/sec BANDWIDTH 345 mV (typ) SWING LVDS DEVICE
