STN4NE03L, N-CHANNEL POWER MOSFET

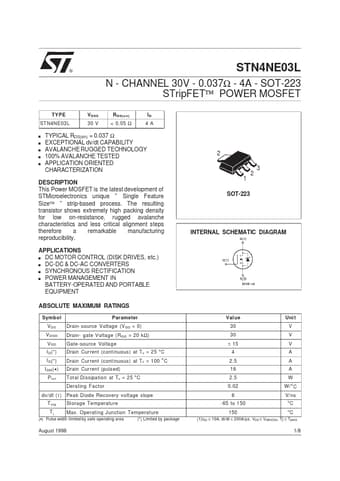

® STN4NE03L N - CHANNEL 30V - 0.037Ω - 4A - SOT-223 STripFET™ POWER MOSFET TYPE ST N4NE03L s s s s s V DSS 30 V R DS(on) < 0.05 Ω ID 4 A TYPICAL.
This Power MOSFET is the latest development of STMicroelectronics unique ” Single Feature Size™ ” strip-based process.

Applications

* DC MOTOR CONTROL (DISK DRIVES, etc. ) s DC-DC & DC-AC CONVERTERS s SYNCHRONOUS RECTIFICATION s POWER MANAGEMENT IN BATTERY-OPERATED AND PORTABLE EQUIPMENT s 1 SOT-223 2 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS VDGR V GS I D(
* ) I D(
* ) I DM (
* ) P t ot Parame
