STN4NF20L Datasheet, Mosfet, STMicroelectronics

STN4NF20L Features

  • Mosfet Order code STN4NF20L VDSS 200 V RDS(on) max. < 1.5 Ω
  • 100% avalanche tested
  • Low gate charge
  • Exceptional dv/dt capability ID 1A Application Switching a

PDF File Details

Part number:

STN4NF20L

Manufacturer:

STMicroelectronics ↗

File Size:

287.86kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This N-channel 200 V realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize input capac

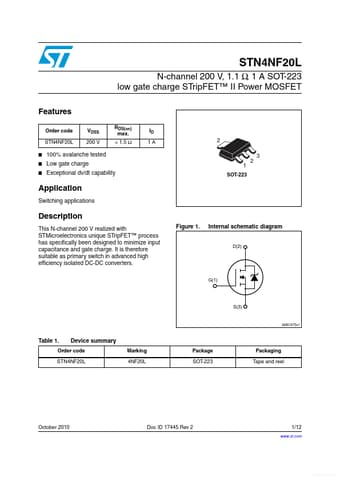

Datasheet Preview: STN4NF20L 📥 Download PDF (287.86kb)
Page 2 of STN4NF20L Page 3 of STN4NF20L

STN4NF20L Application

  • Applications Description This N-channel 200 V realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize
