STN4NF03L, N-CHANNEL POWER MOSFET

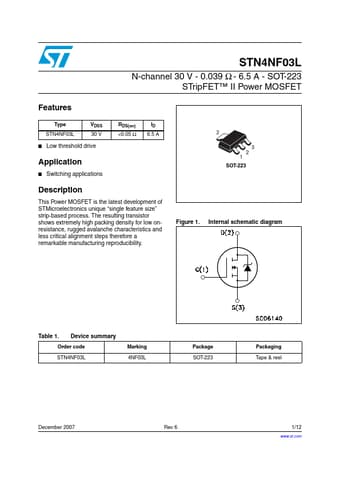

STN4NF03L N-CHANNEL 30V - 0.039Ω - 6.5A SOT-223 STripFET™ II POWER MOSFET TYPE STN4NF03L s s VDSS 30V RDS(on) <0.05Ω ID 6.5A 2 TYPICAL RDS(on) = 0.
This Power Mosfet is the latest development of STMicroelectronics unique “Single Feature Size™ ” stripbased process.

Applications

* s DC-DC & DC-AC CONVERTERS s DC MOTOR CONTROL (DISK DRIVES, etc. ) s SYNCHRONOUS RECTIFICATION ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM ( ) PTOT EAS (1) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuous) at
