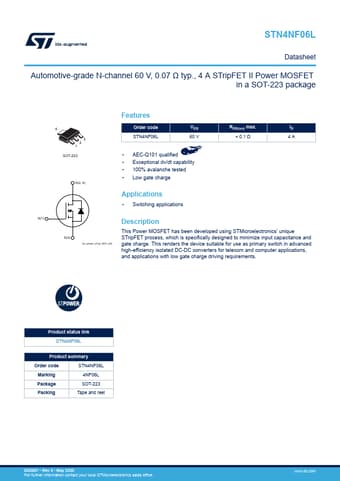

STN4NF06L Datasheet, Mosfet, STMicroelectronics

STN4NF06L Features

• Mosfet Order code VDS RDS(on) max. ID STN4NF06L 60 V < 0.1 Ω 4A
• AEC-Q101 qualified
• Exceptional dv/dt capability
• 100% avalanche tested
• Low gate

PDF File Details

Part number:

STN4NF06L

Manufacturer:

STMicroelectronics ↗

File Size:

658.75kb

Download:

📄 Datasheet

Description:

Automotive-grade n-channel mosfet. This Power MOSFET has been developed using STMicroelectronics' unique S(3) STripFET process, which is specifically designed to min

STN4NF06L Application

• Applications
• Switching applications G(1) Description This Power MOSFET has been developed using STMicroelectronics' unique S(3) STrip
