STN715 Datasheet - ST Microelectronics

STN715_STMicroelectronics.pdf

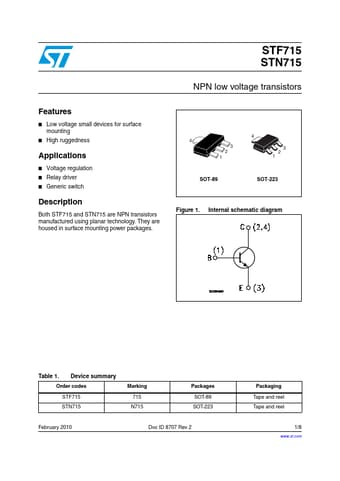

Preview of STN715 PDF
STN715 Datasheet Preview Page 2 STN715 Datasheet Preview Page 3

Datasheet Details

Part number:

STN715

Manufacturer:

STMicroelectronics ↗

File Size:

95.11 KB

Description:

Npn low voltage transistors.

STN715, NPN low voltage transistors

Both STF715 and STN715 are NPN transistors manufactured using planar technology.

They are housed in surface mounting power packages.

4 4 3 2 1 3 2 1 SOT-89 SOT-223 Figure 1.

Internal schematic diagram Table 1.

Device summary Order codes STF715 STN715 Marking 715 N715 Packages SOT-89 SOT-223
