STN749 LOW VOLTAGE PNP TRANSISTOR

The device is manufactured in low voltage PNP Planar Technology by using a "Base Island" layout. The resulting Transistor shows exceptional high gain performance coupled with very low saturation voltage. ABSOLUTE MAXIMUM RATINGS Symbol V CBO V CEO V EBO IC I CM P tot T stg Tj Parameter Collector-Ba.

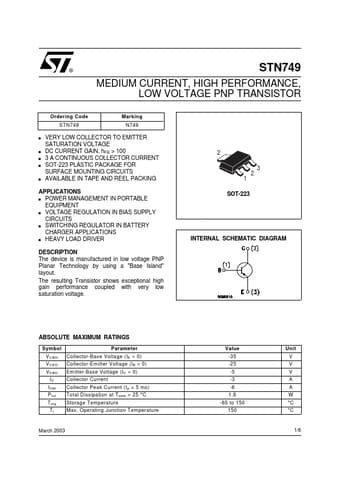

www.DataSheet4U.com ® STN749 MEDIUM CURRENT, HIGH PERFORMANCE, LOW VOLTAGE PNP TRANSISTOR Ordering Code STN749 s Marking N749 s s s s VERY LOW COLLECTOR TO EMITTER SATURATION VOLTAGE DC CURRENT GAIN, hFE > 100 3 A CONTINUOUS COLLECTOR CURRENT SOT-223 PLASTIC PACKAGE FOR SURFACE MOUNTING CIRCUITS AVAILABLE IN TAPE AND REEL PACKING 2 1 SOT-223 2 3 APPLICATIONS POWER MANAGEMENT IN PORTABLE EQUIPMENT s VOLTAGE REGULATION IN BIAS SUPPLY CIRCUITS s SWITCHING REGULATOR IN BATTERY CHARGER AP.
