STN724 Datasheet - ST Microelectronics

NPN MEDIUM POWER TRANSISTORS

STN724 General Description

The STF724 and STN724 are NPN transistors manufactured using Planar technology resulting in rugged high performance devices. 2 3 2 1 SOT-223 SOT-89 Figure 1. Internal schematic diagram Table 1. Device summary Order code Marking STF724 724 STN724 N724 April 2008 Package SOT-89 SOT-223 Rev.

STN724 Datasheet (148.98 KB)

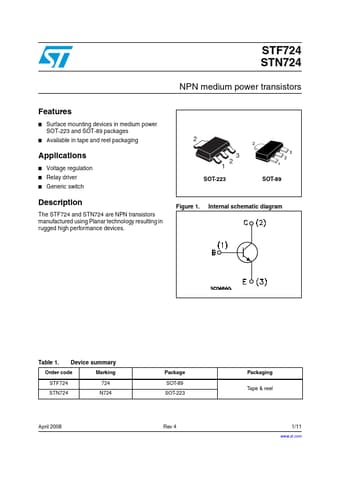

Preview of STN724 PDF

Datasheet Details

Part number:

STN724

Manufacturer:

STMicroelectronics ↗

File Size:

148.98 KB

Description:

Npn medium power transistors.
