STN7NF10 N-CHANNEL MOSFET

STN7NF10 Description

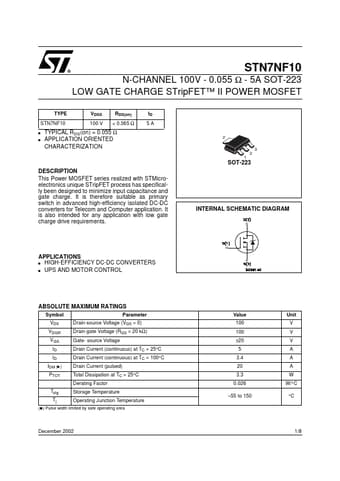

www.DataSheet4U.com STN7NF10 N-CHANNEL 100V - 0.055 Ω - 5A SOT-223 LOW GATE CHARGE STripFET™ II POWER MOSFET TYPE STN7NF10 s s VDSS 100 V RDS(on) <.
This Power MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gat.

STN7NF10 Applications

* HIGH-EFFICIENCY DC-DC CONVERTERS s UPS AND MOTOR CONTROL s ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM ( ) PTOT Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuous) at TC = 25°C Drain Current (continuous) at TC
