STP3NA90FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

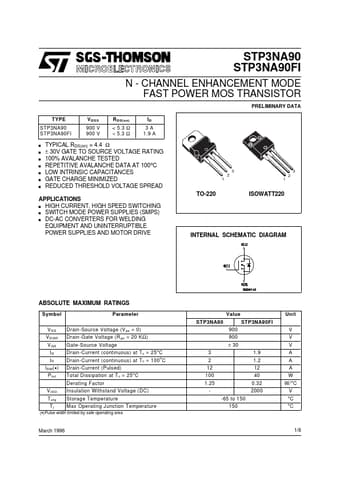

STP3NA90 STP3NA90FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR PRELIMINARY DATA TYPE STP3NA90 STP3NA90FI s s s s s s s V DSS 900 V 900 V R DS(on) < 5.3 Ω < 5.3 Ω ID 3A 1.9 A TYPICAL RDS(on) = 4.4 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INTRINSIC CAPACITANCES GATE CHARGE MINIMIZED REDUCED THRESHOLD VOLTAGE SPREAD TO-220 3 1 2 1 2 3 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s D.

STP3NA90FI Datasheet (111.32 KB)

STP3NA90FI Datasheet Preview — Preview of STP3NA90FI PDF

Datasheet Details

Part number:

STP3NA90FI

Manufacturer:

STMicroelectronics ↗

File Size:

111.32 KB

Description:

N - channel enhancement mode fast power mos transistor.
