STP4NB80FP, STP4NB80 N-CHANNEL MOSFET

STP4NB80FP Description

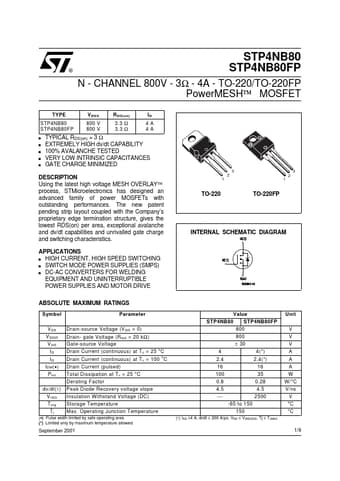

® STP4NB80 STP4NB80FP N - CHANNEL 800V - 3Ω - 4A - TO-220/TO-220FP PowerMESH™ MOSFET TYPE STP4NB80 STP4NB80FP s s s s s V DSS 800 V 800 V R DS(on).
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

STP4NB80FP Applications

* HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE s TO-220 TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID IDM (
* ) P tot dv/dt(1 )

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP4NB80FP, STP4NB80. Please refer to the document for exact specifications by model.
