STP50NE10L N-Channel Enhancement Mode Power MOS Transistor

ST Microelectronics

Description

® STP50NE10L N - CHANNEL 100V - 0.020Ω - 50A TO-220 STripFET™ POWER MOSFET TYPE VDSS RDS(on) STP50NE10L 100 V <0.025 Ω s TYPICAL RDS(on) = 0.020.
This Power MOSFET is the latest development of STMicroelectronics unique "Single Feature Size™" strip-based process.

📥 Download Datasheet

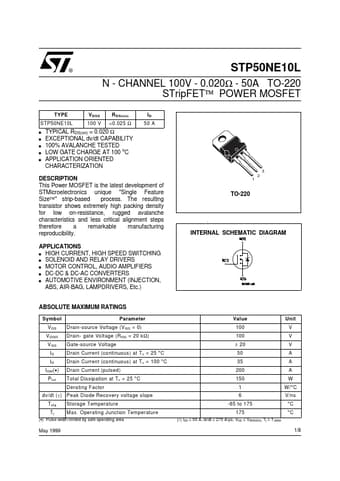

STP50NE10L Datasheet Preview — Preview of STP50NE10L PDF

Datasheet Specifications

Part number: STP50NE10L
Manufacturer: STMicroelectronics ↗
File Size: 259.11 KB
Datasheet: STP50NE10L_STMicroelectronics.pdf
Description: N-Channel Enhancement Mode Power MOS Transistor

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC & DC-AC CONVERTERS s AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMPDRIVERS, Etc. ) 3 2 1 TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter VDS Drain-source
