STP5N120 Datasheet, Mosfet, STMicroelectronics

STP5N120 Features

  • Mosfet Type VDSS RDS(on) ID PW STP5N120 1200 V < 3.5 Ω 4.7 A 160 W t(s)
  • 100% avalanche tested
  • Extremely high dv/dt capability uc
  • ESD improved capability rod

PDF File Details

Part number:

STP5N120

Manufacturer:

STMicroelectronics ↗

File Size:

292.59kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. ) -The SuperMESH™ series is obtained through an t(sextreme optimization of ST’s well established strip-based PowerMESH™ layout. In ad

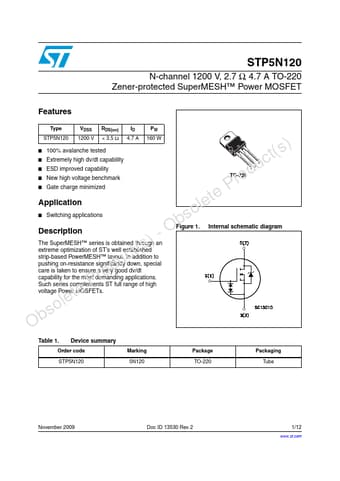

Datasheet Preview: STP5N120 📥 Download PDF (292.59kb)
Page 2 of STP5N120 Page 3 of STP5N120

STP5N120 Application

  • Applications ObsDescription ) -The SuperMESH™ series is obtained through an t(sextreme optimization of ST’s well established strip-based PowerMESH™
