STP5N60M2

N-channel Power MOSFET

STMicroelectronics

STP5N60M2 Features

* Order code VDS@ TJmax STD5N60M2 STP5N60M2 650 V STU5N60M2

* Extremely low gate charge

* Excellent output capacitance (COSS) profile

* 100% avalanche tested

* Zener-protected RDS(on) max. 1.4 Ω ID 3.5 A Applications

* Switching applications Descripti

STP5N60M2 General Description

These devices are N-channel Power MOSFETs developed using the MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, these devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high-efficiency converter.

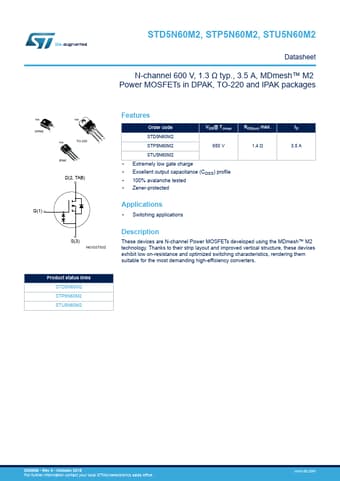

STP5N60M2 Datasheet (500.93 KB)

STP5N60M2 Datasheet Preview — Preview of STP5N60M2 PDF

Datasheet Details

Part number:

STP5N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

500.93 KB

Description:

N-channel power mosfet.
STD5N60M2, STP5N60M2, STU5N60M2 Datasheet N-channel 600 V, 1.3 Ω typ., 3.5 A, MDmesh™ M2 Power MOSFETs in DPAK, TO-220 and IPAK packages TAB DPAK 3.
