STP5N80K5 - N-channel Power MOSFET

STP5N80K5 Description

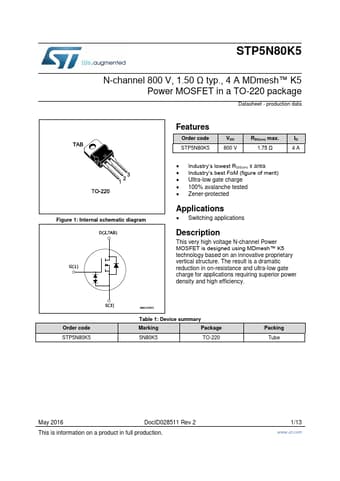

STP5N80K5 N-channel 800 V, 1.50 Ω typ., 4 A MDmesh™ K5 Power MOSFET in a TO-220 package Datasheet - production data Figure 1: Internal schematic dia.
This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

STP5N80K5 Features

* Order code STP5N80K5 VDS 800 V RDS(on) max. 1.75 Ω ID 4A
* Industry’s lowest RDS(on) x area
* Industry’s best FoM (figure of merit)
* Ultra-low gate charge
* 100% avalanche tested
