STP5N105K5 - N-channel Power MOSFET

STP5N105K5 Description

STP5N105K5 N-channel 1050 V, 2.9 Ω typ., 3 A MDmesh™ K5 Power MOSFET in a TO-220 package Datasheet - production data .
This N-channel Zener-protected Power MOSFET is designed using ST’s revolutionary avalancherugged very high voltage MDmesh™ K5 technology, based on an.

STP5N105K5 Features

* Order code VDS RDS(on) max. ID PTOT STP5N105K5 1050 V 3.5 Ω 3 A 85 W Figure 1: Internal schematic diagram D(2, TAB) G(1) S(3) AM01476v1
* Worldwide best FOM (figure of merit)
* Ultra low gate charge
* 100% avalanche tested

📥 Download Datasheet

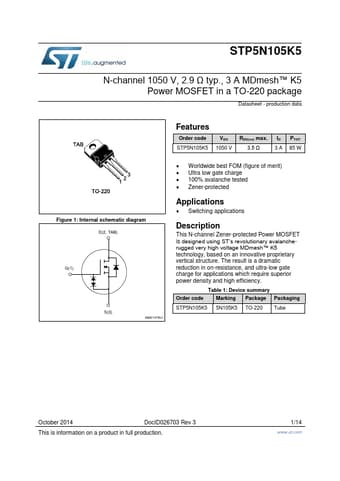

Preview of STP5N105K5 PDF
datasheet Preview Page 2 datasheet Preview Page 3
