STPS30L30CT Low drop power Schottky rectifier

ST Microelectronics

Description

STPS30L30C Low drop power Schottky rectifier .
This dual center tap Schottky rectifier is suited for switch mode power supplies and high frequency DC to DC converters.

📥 Download Datasheet

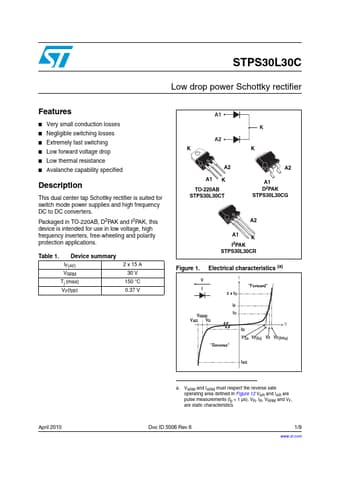

STPS30L30CT Datasheet Preview — Preview of STPS30L30CT PDF

Datasheet Specifications

Part number: STPS30L30CT
Manufacturer: STMicroelectronics ↗
File Size: 107.88 KB
Datasheet: STPS30L30CT_STMicroelectronics.pdf
Description: Low drop power Schottky rectifier

Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low forward voltage drop
* Low thermal resistance

Applications

* Table 1. Device summary IF(AV) VRRM Tj (max) VF(typ) 2 x 15 A 30 V 150 °C 0.37 V A1 A2 K A2 A1 K TO-220AB STPS30L30CT K K A2 A1 D2PAK STPS30L30CG A2 A1 K I2PAK STPS30L30CR Figure 1. Electrical characteristics (a) V I "Forward" I 2 x IO X VRRM VAR VR IF IO IR X V "Reverse" VTo VF
