STPS30L30DJF Datasheet - STMicroelectronics

efficiency PowerFLAT power Schottky diode

STPS30L30DJF Features

* Low forward voltage drop

* Very low conduction losses

* Negligible switching losses

* Extremely fast switching

* Low thermal resistance

* Avalanche rated

* High integration

* Thin package: 1 mm

* ECOPACK2 compliant Application

STPS30L30DJF General Description

This Schottky rectifier is ideally suited for switch mode power supply and high frequency DC to DC converters. Packaged in PowerFLAT 5x6, the STPS30L30DJF is optimized for use in low voltage high frequency inverters, free-wheeling and polarity protection applications. Its low profile was especially .

STPS30L30DJF Datasheet (316.44 KB)

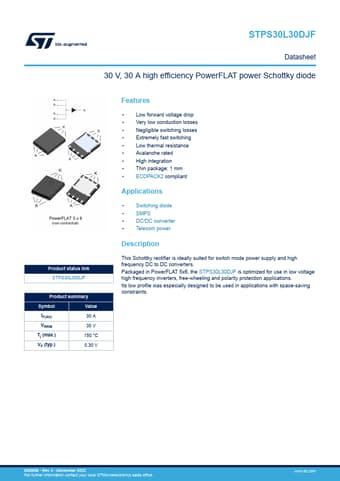

STPS30L30DJF Datasheet Preview — Preview of STPS30L30DJF PDF

Datasheet Details

Part number:

STPS30L30DJF

Manufacturer:

STMicroelectronics ↗

File Size:

316.44 KB

Description:

Efficiency powerflat power schottky diode.
STPS30L30DJF Datasheet 30 V, 30 A high efficiency PowerFLAT power Schottky diode Product status link STPS30L30DJF Product summary Symbol Value IF.
