STPS30L120CR, STPS30L120C Datasheet - STMicroelectronics

STPS30L120CR Power Schottky rectifier

This dual center tap Schottky rectifier is optimized for high frequency switch mode power supplies. Packaged in TO-220AB, I2PAK and TO-220FPAB, the STPS30L120C provides adaptor designers with an optimized price-performance ratio. DS6493 - Rev 4 - July 2018 For further information contact your local.

STPS30L120CR Features

* High junction temperature capability

* Avalanche capability specified

* Low forward voltage drop current

* High frequency operation

* Insulated package: TO-220FPAB

* Insulating voltage = 1500 VRMS

* ECOPACK®2 compliant Applications

STPS30L120C-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STPS30L120CR, STPS30L120C. Please refer to the document for exact specifications by model.

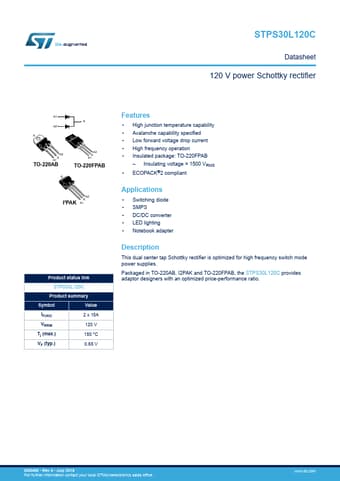

STPS30L120CR Datasheet Preview Page 2 STPS30L120CR Datasheet Preview Page 3

Datasheet Details

Part number:

STPS30L120CR, STPS30L120C

Manufacturer:

STMicroelectronics ↗

File Size:

247.62 KB

Description:

Power schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: STPS30L120CR, STPS30L120C.
Please refer to the document for exact specifications by model.
