STPS30L45CT, STPS30L45CG Datasheet - ST Microelectronics

STPS30L45CT Low drop power Schottky rectifier

Dual center tap Schottky rectifier suited for switched mode power supplies and high frequency DC to DC converters. Packaged in TO-247, TO-220AB, TO-220FPAB, D2PAK and I2PAK this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications. .

STPS30L45CT Features

* low forward voltage drop meaning very small conduction losses

* low switching losses allowing high frequency operation

* low thermal resistance

* avalanche rated

* insulated package TO-220FPAB:

* insulating voltage = 2000 V DC

* capacitance = 45 pF

* avalanc

STPS30L45CG_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STPS30L45CT, STPS30L45CG. Please refer to the document for exact specifications by model.

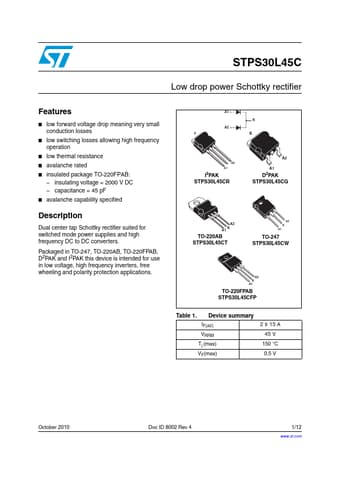

STPS30L45CT Datasheet Preview Page 2 STPS30L45CT Datasheet Preview Page 3

Datasheet Details

Part number:

STPS30L45CT, STPS30L45CG

Manufacturer:

STMicroelectronics ↗

File Size:

139.05 KB

Description:

Low drop power schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: STPS30L45CT, STPS30L45CG.
Please refer to the document for exact specifications by model.
