STS3DPF20V DUAL P-CHANNEL POWER MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

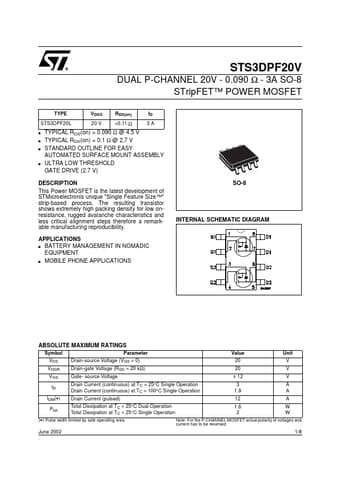

DUAL P-CHANNEL 20V - 0.090 Ω - 3A SO-8 STripFET™ POWER MOSFET TYPE STS3DPF20L s s s STS3DPF20V VDSS 20 V RDS(on) <0.11 Ω ID 3A s TYPICAL RDS(on).
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

📥 Download Datasheet

Preview of STS3DPF20V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* s BATTERY MANAGEMENT IN NOMADIC EQUIPMENT s MOBILE PHONE APPLICATIONS INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID IDM(
* ) Ptot Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuous) at TC = 25°
