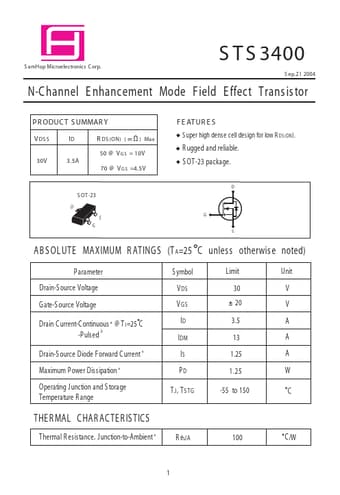

S amHop Microelectronics C orp.
S T S 3400 S ep.21 2004 N-C hannel E nhancement Mode Field E ffect Trans is tor P R ODUC T S UMMAR Y V DS S 30V F E AT UR E S ( m W ) Max ID 3.5A R DS (ON) S uper high dense cell design for low R DS (ON ).
50 @ V G S = 10V 70 @ V G S =4.5V R ugged and reliable.
S OT-23 package.
D S OT-23 D S G G S AB S OL UTE MAXIMUM R ATINGS (T A =25 C unles s otherwis e noted) P arameter Drain-S ource Voltage Gate-S ource Voltage Drain C urrent-C ontinuous a @ T J =2
