- Part number
- STTA5012TV1
- Manufacturer
- STMicroelectronics ↗
- File Size
- 262.78 KB
- Datasheet
- STTA5012TV1_STMicroelectronics.pdf
- Description
- (STTAxxxx) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE
Description

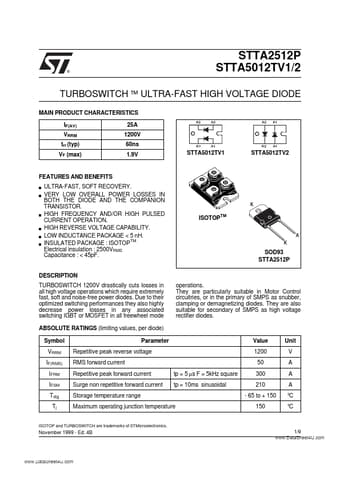

( DataSheet : www.DataSheet4U.com ) ® STTA2512P STTA5012TV1/2 TURBOSWITCH ™ ULTRA-FAST HIGH VOLTAGE DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM .
Features
* ULTRA-FAST, SOFT RECOVERY. VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR. HIGH FREQUENCY AND/OR HIGH PULSED CURRENT OPERATION. HIGH REVERSE VOLTAGE CAPABILITY. LOW INDUCTANCE PACKAGE < 5 nH. INSULATED PACKAGE : ISOTOPTM Electrical insulation : 2500VRMS Capacitance : <Applications
* (Fig A to D),the way of calculating the power losses is given below : TOTAL LOSSES due to the diode P = P1+ P2+ P3+ P4+ P5 Watts CONDUCTION LOSSES in the diode REVERSE LOSSES in the diode SWITCHING LOSSES in the diode SWITCHING LOSSES in the tansistor due to the diode Fig. A : "FREEWHEEL" MODSTTA5012TV1 Distributors
