STTA512B Datasheet, Diode, ST Microelectronics

STTA512B Features

  • Diode n 5A 1200V 45ns 2.0V A K A K K n n n n n n SPECIFIC TO THE FOLLOWING OPERATIONS: SNUBBING OR CLAMPING, DEMAGNETIZATION AND RECTIFICATION ULTRA-FAST, SOFT RECOVERY. VERY LOW OVERA

PDF File Details

Part number:

STTA512B

Manufacturer:

STMicroelectronics ↗

File Size:

198.10kb

Download:

📄 Datasheet

Description:

(stta512x) turboswitch ultra-fast high voltage diode. TURBOSWITCH 1200V drastically cuts losses in all high voltage operations which require extremely fast, soft and noise-free power diod

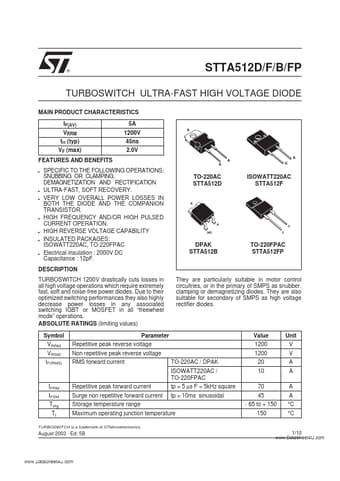

Datasheet Preview: STTA512B 📥 Download PDF (198.10kb)
Page 2 of STTA512B Page 3 of STTA512B

STTA512B Application

  • Applications (Fig A to D),the way of calculating the power losses is given below : TOTAL LOSSES due to the diode P = P1+ P2+ P3+ P4+ P5 Watts CON
